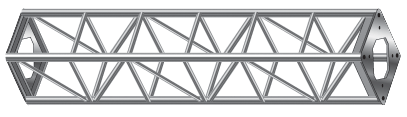

Concert Series Square 20.5 Truss

All members aluminum alloy 6061-T6

Top and bottom chords are 2" dia. x 0.125" tubes

Diagonal & Inner vertical braces are 2" dia. x 0.125" tubes & 1" dia. x 0.125" tubes

All end connetion bolts 5/8" - Grade 8

Maximum deflection ≤ length (inches)/240

ALLOWABLE LOAD DATA

	Uniformly Distributed Load (MAX)		Center Point Load (MAX)
Length (ft)	lbs / ft	lbs	lbs
10	732	7320	3663
20	203	4060	2039
30	99	2970	1495
40	47	1880	950

Concert Series Pre-Rigged Truss (PAR-12)

All members aluminum alloy 6061-T6

Top and bottom chords are 2" dia. x 0.125" tubes

Diagonal & Inner vertical braces are 2" dia. x 0.125" tubes & 1" dia. x 0.125" tubes

All end connetion bolts 5/8" - Grade 8

Maximum deflection ≤ length (inches)/240

PAR-12:Pre-rigged double hung box truss 26"x30"x91"

PAR-13:Pre-rigged double hung box truss 26"x30"x93"

PAR-06:Pre-rigged double hung box truss 26"x18"x91"

ALLOWABLE LOAD DATA

	Uniformly Distributed Load (MAX)		Center Point Load (MAX)
Length (ft)	lbs / ft	lbs	lbs
7'-7"	1099	8462	4258
15'-2"	489	7432	3789
22'-9"	245	5610	2848
30'-4"	120	3648	1860
37'-11"	78	2957	1511
