ITTC TRUSS PRODUCT LINE
ITTC PRODUCT LINE

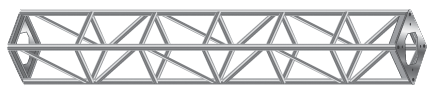

1.5" Heavy Duty Square Truss
- All members aluminum alloy 6061-T6
- Top and bottom chords are 1-1/2" dia. x 0.125" tubes
- Diagonal & Inner vertical braces are 1" dia. x 0.125" tubes
- All end connetion bolts 5/8" - Grade 8
- Maximum deflection ≤ length (inches)/240
ALLOWABLE LOAD DATA
|
Uniformly Distributed Load (MAX) |
Center Point Load (MAX) |
Length (ft) | lbs / ft | lbs | lbs |
10 | 480 | 4800 | 2400 |
20 | 95 | 1900 | 957 |
30 | 40 | 1200 | 594 |
40 | 15 | 600 | 304 |
1.5" Heavy Duty Triangular Truss
- All members aluminum alloy 6061-T6
- Top and bottom chords are 1-1/2" dia. x 0.125" tubes
- Diagonal & Inner vertical braces are 1" dia. x 0.125" tubes
- All end connetion bolts 5/8" - A307
- Maximum deflection ≤ length (inches)/240
ALLOWABLE LOAD DATA
|
Uniformly Distributed Load (MAX) |
Center Point Load (MAX) |
Length (ft) | lbs / ft | lbs | lbs |
10 | 415 | 4150 | 2075 |
20 | 32 | 640 | 327 |
30 | 14 | 420 | 213 |
40 | 4 | 160 | 99 |
1.5" Heavy Duty Ladder Truss
- All members aluminum alloy 6061-T6
- Top and bottom chords are 1-1/2" dia. x 0.125" tubes
- Diagonal & Inner vertical braces are 1" dia. x 0.125" tubes
- All end connetion bolts 5/8" - Grade 8
- Maximum deflection ≤ length (inches)/240
